INSTALLATION AND USE INSTRUCTIONS NIMBUS® R

Thanks to a linear process and guided, installing nimbus R becomes a simple task.

UNBOXING

Packaging EN.png

Before starting the process, keep in mind:

Consejos EN.png


ASSEMBLY

Ensamblaje EN.png

Warning:

Once connected, avoid direct contact with the lightning rod while you wait for execution of a  remote test requested from an R-Tester (this could take some minutes and will be indicated on nimbus® R by a flashing LED at the bottom edge of PV-box).


nimbus R


R-Tester Parts EN.png

R-Tester


REMOTE TEST. Connectivity and verification


Test before installation at height to make sure the lightning rod was correctly connected to the PV module.

Remote test results



OK

Streamer electronics are ok

OUT OF RANGE

Oops! Connection was lost, retry

FAIL

Streamer electronics reached end-of-life, replace air terminal

Boton interrogacion.png

To prevent electric shock, fire or personal injury:

  • Remove batteries if you are not going to use the product for a long period of time.

  • Do not store batteries in direct sunlight or at high temperature.

  • To ensure product performance, only batteries of the same or equivalent type as recommended should be used.

  • To avoid leaks, make sure that batteries are inserted the right way round and with the correct polarity.

  • Batteries contain dangerous chemicals that can cause burns or explode. If exposed to chemicals get medical attention promptly.



INSTALLATION


Test before installation at height to make sure the lightning rod was correctly connected to the PV module. Keep the following considerations in mind for the best possible installation.

Esquema instalacion nimbus R

1. Orient the PV module acc. to your location

Orientació EN.png

2. If needed, adjust to best orient PV towards S or N (+/-60º)

3-PV-Box orientation.png

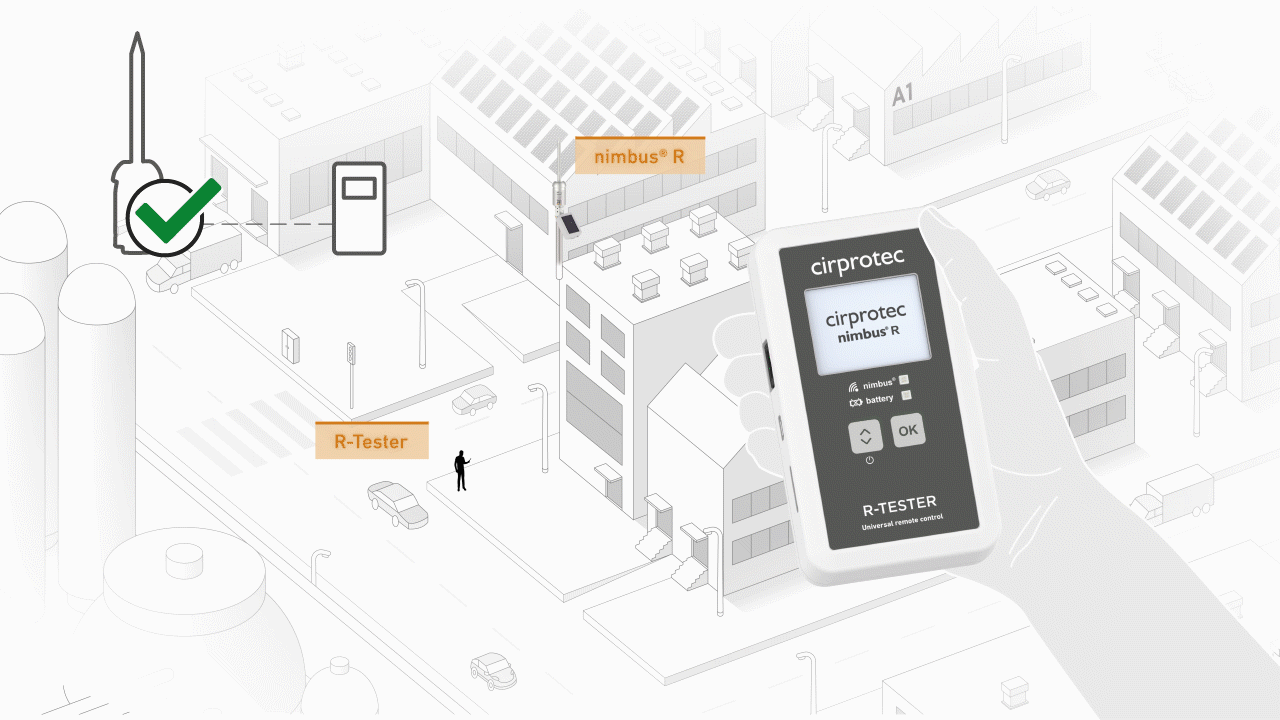

3. Distance range for remote test from R-TESTER

Visual indication EN.png

RF: Radiofrequency range

Best avoid situations with more than 2 or 3 walls/floors between R-Tester and nimbus® R for NLOS (no line-of-sight) situations.



REMOTE TEST

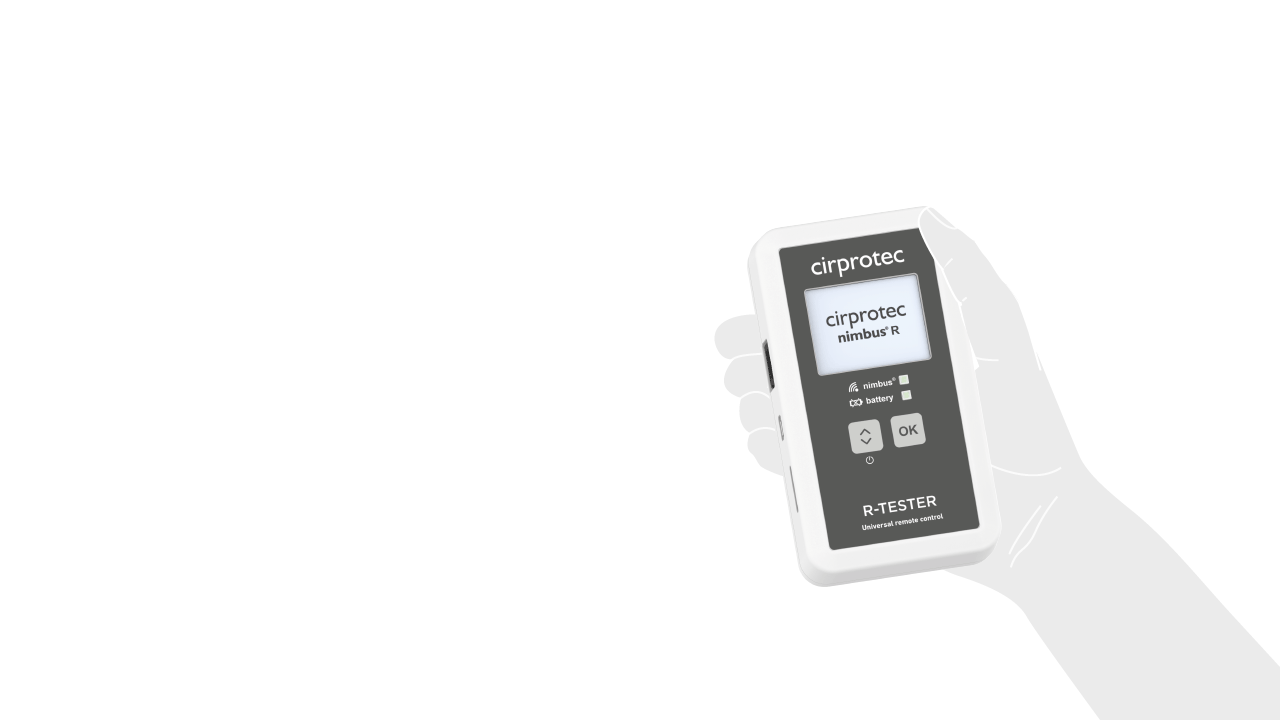

Checking the electronics components by test your nimbus® R

Check-Test nimbus-EN.gif

Checking battery level of PV-box.
